منتجات
‹
›
‹
›
رقم القطعة | وصف | نوع الكسارة | الوزن (كجم) |
188320 | CASE GP300/GP300S | GP300 | 118.530 |
188322 | CNTRSHFT GP300/GP300S | GP300 | 62.500 |
189223 | HEAD GP300 | GP300 | 1,366.300 |
189276 | ECCENTRIC BUSHING G2612 25/32/40/50 | GP300 | 82.000 |
292721 | NUT TR300X12-8H GP300/S | GP300 | 54.420 |
292723 | BRNG GP300/300S | GP300 | 14.960 |
292817 | PROTECTION PLATE G12 | GP300 | 58.700 |
292826 | CNTRSHFT ASSY GP300/GP300S | GP300 | 205.000 |
295245 | MAIN SHAFT GP300 | GP300 | 1,090.170 |
295251 | TOP BRNG G2612 25/32/40/50 | GP300 | 46.070 |
340082 | COVER GP300/300S | GP300 | 130.000 |
341053 | PROTECTION PLATE G12 | GP300 | 17.000 |
341327 | SLIDE RING G2612 | GP300 | 64.000 |
341336 | PROTECTION BUSHING G2612 | GP300 | 39.000 |
446421 | حلقة المباعد GP300 & GP300S ؛ ST 52-3 | GP300 | 3.306 |
446428 | O-RING GP300/300S | GP300 | 0.050 |
446429 | O-RING GP300/300S | GP300 | 0.070 |
446430 | O-RING GP300/300S | GP300 | 0.100 |
446432 | O-RING GP300/300S | GP300 | 0.070 |
446517 | O-RING GP300/300S | GP300 | 0.020 |
447394 | SEAL G2612 ER.447394 | GP300 | 4.630 |
447419 | GUIDE RING G12 | GP300 | 0.200 |
487516 | PLATE LEVY | GP300 | 5.150 |
495365 | SCREW RMVNG M48X90 G-SERIES | GP300 | 2.200 |
585351 | LOW FRAME GP300/S | GP300 | 4,436.780 |
585614 | COVER CASTING GP300 | GP300 | 59.120 |
585664 | COVER GP300 / GP300S | GP300 | 67.980 |
585701 | COVER | GP300 | 45.460 |
905243 | FRAME UPR GP300 | GP300 | 1,997.580 |
910447 | SLIP RING GP300 | GP300 | 218.000 |
913757 | PIPE G3310 | GP300 | 0.300 |
915114 | TOOL AND EQUIPMENT G3812, G2612 | GP300 | 30.200 |
916188 | FRAME ASSY UPR GP300 | GP300 | 2,240.160 |
916189 | MAIN SHAFT ASSY GP300 | GP300 | 2,575.000 |
925784 | BUSHING | GP300 | 62.620 |
925808 | BRNG | GP300 | 2.800 |
925832 | SHIM SHEET | GP300 | 0.200 |
930039 | SCREW RET | GP300 | 0.100 |
931612 | PISTON GP300/300S | GP300 | 344.920 |
931619 | ECCENTRIC SHAFT | GP300 | 250.000 |
931714 | FRAME BUSHING GP300/S | GP300 | 73.000 |
933913 | SUB-FRAME ASSEMBLY GP300/GP300S | GP300 | 690.000 |
938157 | O-RING GP300/300S | GP300 | 0.050 |
938379 | THRUST BRNG GP300 & GP300S | GP300 | 62.000 |
942187 | CNTRL BOX A2020 DCU GP-STD | GP300 | 2.200 |
7002152765 | SEAL RING | GP300 | 0.000 |
7002420046 | ELBOW ADAPTER GG306-NP20-20, (MALE 1 5/ | GP300 | 0.500 |
704003814000 | SCREW SLOT-HEAD ISO1207-M6X50-5.8-A3A | GP300 | 0.011 |
704103068600 | PLUG DIN906-M12X1,5-ST ZNPH | GP300 | 0.010 |
705302060300 | ROLLER BRNG DIN5412-NU2220ECP | GP300 | 4.900 |
705303160308 | ROLLER BRNG 32220 J2 | GP300 | 4.900 |
706201083422 | PRSSR REL VALVE 0532002012 (35BAR), R9 | GP300 | 0.300 |
706202557951 | TAPERED SLEEVE 4030X95, 029R0095 | GP300 | 5.600 |
706300790095 | CNNCTN 20R6MXS | GP300 | 0.710 |
706300910001 | PISTON SEAL UN600X550X25 PU 90 SH | GP300 | 0.500 |
706302285600 | SEAL 270X311,5X18 ER.NRO.900303 | GP300 | 0.600 |
814318940300 | MANTLE F | GP300 | 597.580 |
814390455800 | CONCAVE F | GP300 | 703.850 |
949618831627 | DRIVE GEAR PAIR G12 188316+292727 | GP300 | 157.000 |
292819-A | PROTECTION PLATE GP300S | GP300 | 40.000 |
295247-A | PROTECTION PLATE G12 | GP300 | 16.000 |
295247-B | PROTECTION PLATE G12 | GP300 | 16.000 |
MM0202186 | مادة صب الغطاء: EN 1563: EN-GJS- | GP300 | 34.040 |
MM0202187 | مادة صب الغطاء: EN 1563: EN-GJS- | GP300 | 34.040 |
MM0209387 | V-BELT SPC 2550MM | GP300 | 0.000 |
MM0214322 | HYDRAULIC PUMP AZPF-10-014RHO30MB | GP300 | 5.000 |
MM0216093 | SUB-FRAME GP300 / GP300S | GP300 | 1,436.800 |
MM0222708 | V-BELT PULLEY 450X8 SPC-TL(5050) | GP300 | 119.390 |
MM0224259 | PLATE | GP300 | 8.710 |
MM0224945 | COUNTERSHAFT ASSEMBLY GP300/GP300S | GP300 | 198.160 |
MM0226633 | PLATE WELDING GP-LUB UNIT | GP300 | 0.820 |
MM0230333 | TAPERED SLEEVE 4030X100 | GP300 | 0.000 |
MM0242240 | MANTLE C/EC | GP300 | 625.430 |
MM0242241 | CONCAVE EC | GP300 | 816.450 |
MM0251206 | HYDR HOSE 90JF-12/EN857-2SC-12/JF-16/L80 | GP300 | 1.160 |
MM0259738 | MAIN SHAFT GP300 | GP300 | 1,082.160 |
MM0259894 | HEAD GP300 | GP300 | 1,373.680 |
MM0262457 | MAIN SHAFT ASSY GP300 SPARE PART ASSEMBL | GP300 | 2,494.980 |
MM0266967 | ECCENTRIC BUSHING GP300 25/32/40 | GP300 | 78.800 |
MM0267450 | ECCENTRIC SHAFT GP300 | GP300 | 252.610 |
MM0269407 | BRNG GP300/S | GP300 | 18.220 |
MM0301048 | MAIN SHAFT ASSY GP300 | GP300 | 2,587.830 |
MM0304737 | LOW FRAME GP300/S | GP300 | 4,406.820 |
MM0358252 | TRMNL PLUG VSTI1/8EDCF | GP300 | 0.010 |
N02152934 | HYDRAULIC PUMP P257086KVZA20-32 | GP300 | 23.500 |
N02154096 | OIL COOLER T 1626.065.X009 | GP300 | 41.000 |
N02154758 | BLADE 8400.569.0630 | GP300 | 3.000 |
N02445981 | RETURN FILTER MRH 150 MS1 DB 90 3 XX | GP300 | 14.200 |
N05222814 | MTR PROTECTIVE CIRCUIT BREAKER GV2-ME07 | GP300 | 0.260 |
N05428749 | SQUIRR CAGE MOTOR K21R 112M4 4KW/1500 B | GP300 | 37.000 |
N11896339 | MAIN SHAFT ASSY G12 FINE VARAOSAVERSIO | GP300 | 1,091.790 |
N11905094 | CONCAVE MF/C | GP300 | 1,097.750 |

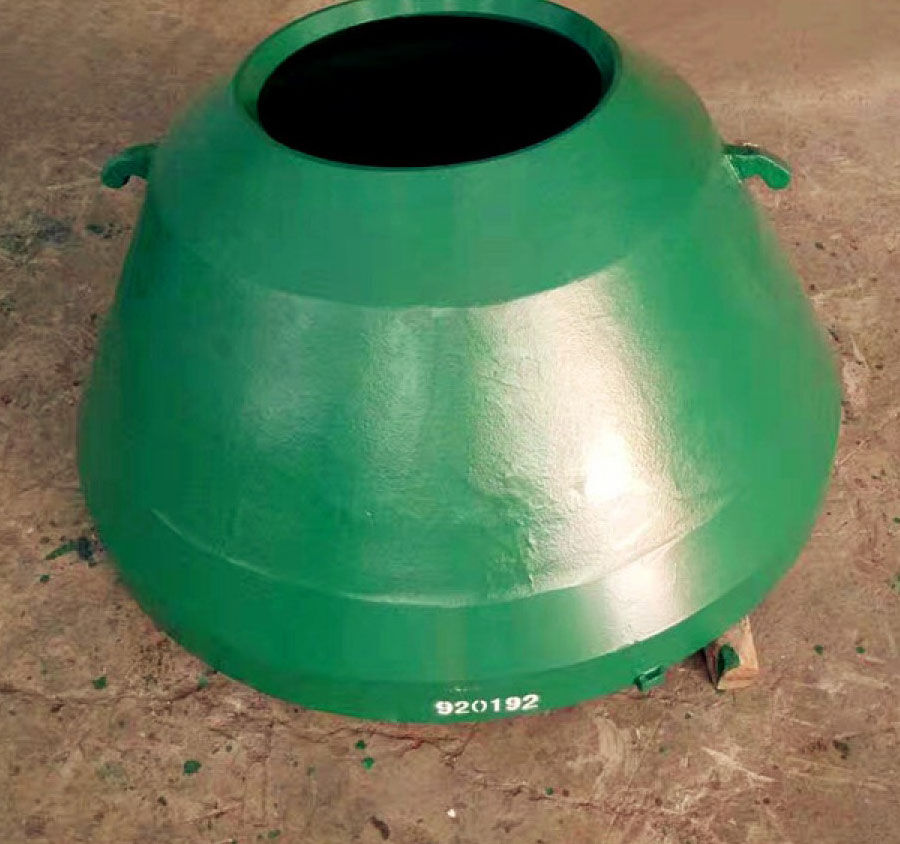

N11920192 | MANTLE MF/M | GP300 | 753.880 |
N11920194 | CONCAVE MF/C LS | GP300 | 979.240 |

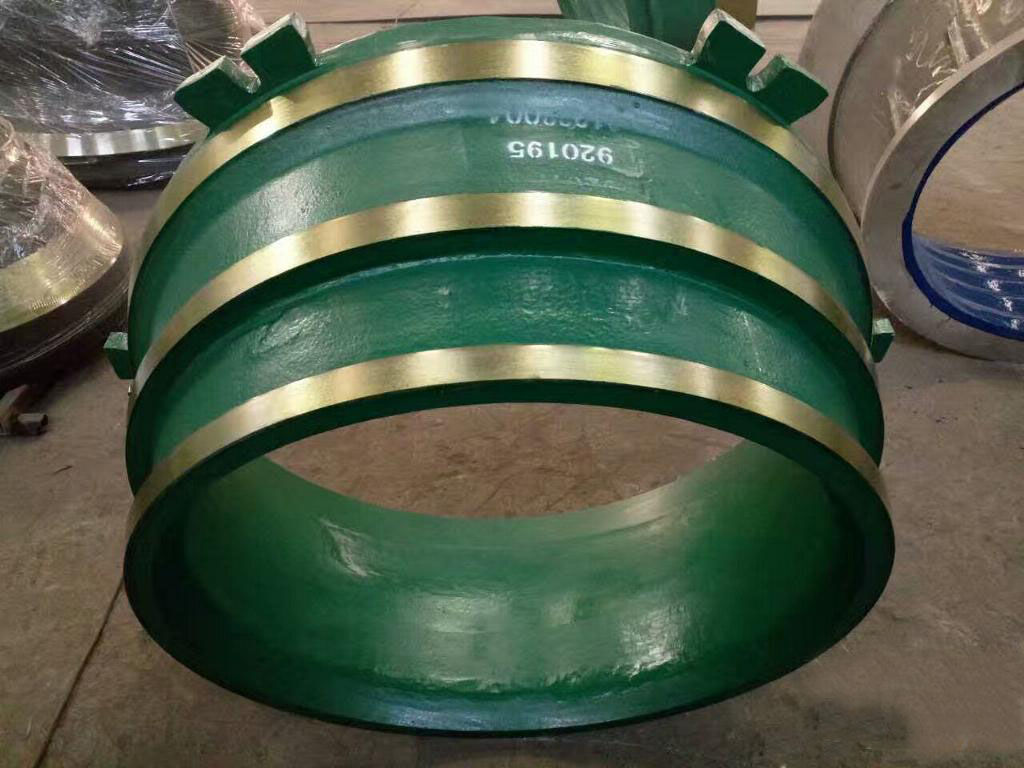

N11920195 | CONCAVE M | GP300 | 921.580 |
N11920196 | MANTLE C/EC | GP300 | 625.430 |
N11920197 | CONCAVE EC | GP300 | 816.450 |
رقم القطعة | وصف | وزن |
188319 | الإطار UPR GP300S | 1,209.800 |
188321 | رأس GP300S | 1,464.640 |
188325 | جلبة غريبة GP300S 18/25/32/40 | 78.910 |
292715 | رمح رئيسي GP300S ، G3812 ، G2812 | 1,409.760 |
292720 | محمل علوي E18 / 25/32/40 | 45.770 |
292818 | لوحة حماية GP300S | 52.960 |
315928 | سلايد رينج G12 | 64.000 |
315929 | جلبة الحماية G3812 | 40.370 |
446209 | SEAL G12 446209 | 4.490 |
447414 | DAMPER GP- سلسلة | 25.300 |
905246 | الإطار المتوسط GP300S | 2,172.350 |
915829 | إطار آسى UPR GP300S | 3,701.710 |
915831 | تجميع رمح الرئيسي GP300S | 2,970.000 |
931651 | رمح غريب | 250.000 |
936405 | رمح رئيسي آسى GP300S قطع غيار VERSI | 2,834.920 |
7001530885 | بولت هيكس ISO4014-M42X140-8.8-A3A | 2.130 |
7002125787 | HTR | 6.000 |
406303279957 | V-BELT PULLEY SPC 560/8 (4535) | 109.000 |
704203751000 | ستود DIN938-M42X120-8.8 | 1.600 |
705501260473 | V-BELT ISO4184-SPC 3150 | 1.200 |
706201083421 | PRSSR REL VALVE 0532002012 (26 بار) ، R9 | 0.200 |
814318836900 | مانتل سي / إي سي | 964.990 |
814318862000 | مقعر GP300S C 0861-512 | 951.060 |
814318862100 | مقعر أعلى ج | 472.350 |
814329276100 | مقعر GP300S EC 0861-512 | 946.010 |
814329276200 | مقعر العلوي EC | 415.710 |
814390336100 | مانتل EC LS | 884.000 |
814390336200 | مقعر SPCL EXTEN GP300S EC-LS (G3812- | 839.000 |
949640566600 | برغي M30X380 G3210-SERIES 405666 | 2.670 |
292819-B | لوحة حماية GP300S | 40.000 |
MM0214492 | كابينة التحكم 250KW ، GP300S | 0.000 |
MM0216826 | جلبة 4030X95 | 0.000 |
MM0227940 | جلبة غريب الأطوار GP300S 28/36 | 79.590 |
MM0228204 | TOP BRNG GP300S 28/36 | 46.020 |
MM0239535 | رمح غريب الأطوار GP300S رمح غريب | 252.820 |
MM0262147 | CNTRSHFT GP300 | 67.690 |
MM0347269 | CNTRL MOD 41391-454-01-S1FX | 1.000 |
